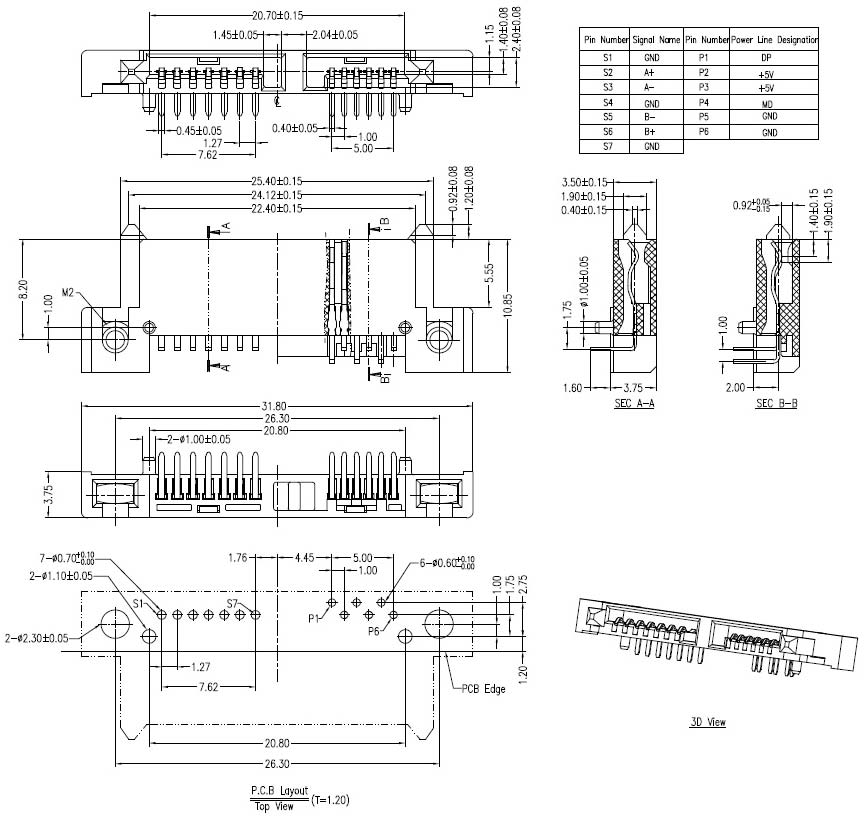

Description
- Slim Line SATA 7+6P
- Female
- Right Angle
- Standard Type
- DIP
- H=3.75mm
- With Screw
- 15u” Plating
Material
- Housing: LCP+50%G.F, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold plating over Nickel on contact area;
Tin plating on solder Tail.
- Screw: Zn Plating over Fe.
Mechanical
- Insertion Force: 45N Max.
- Withdrawal Force: 10N Min.
- Durability: 500 Cycles.
Electrical Specification
- Operation Voltage: 100VAC Max.
- Current Rating: 1.5 Ampere per Contact.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC.
Environmental
- Operating Temperature: -55°C to +85°C
- RoHS Compliance.
![]()
![]()
