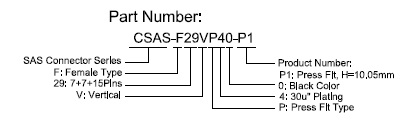

CSAS-F29VP40-P1

Material

• Housing: PA9T+30% G.F., UL 94V-0 rated.
• Color: Black.
• Contact: Phosphor Bronze.
• Plating: Gold plating over Nickel on contact area;
  Tin plating on solder Tail.
• Harpoon: SUS.

Mechanical

• Insertion Force: 25N Max.
• Withdrawal Force: 5N Min.
• Durability: 500 Cycles.

Electrical Specification

• Operation Voltage: 100VAC Max.
• Current Rating: 1.5 Ampere per Contact.
• Contact Resistance: 30mΩ Max.
• Insulation Resistance: 1000MΩ Min.
• Dielectric Withstanding Voltage: 500 VAC.

Environmental

• Operating Temperature: 0°C to +55°C
• RoHS Compliance.
