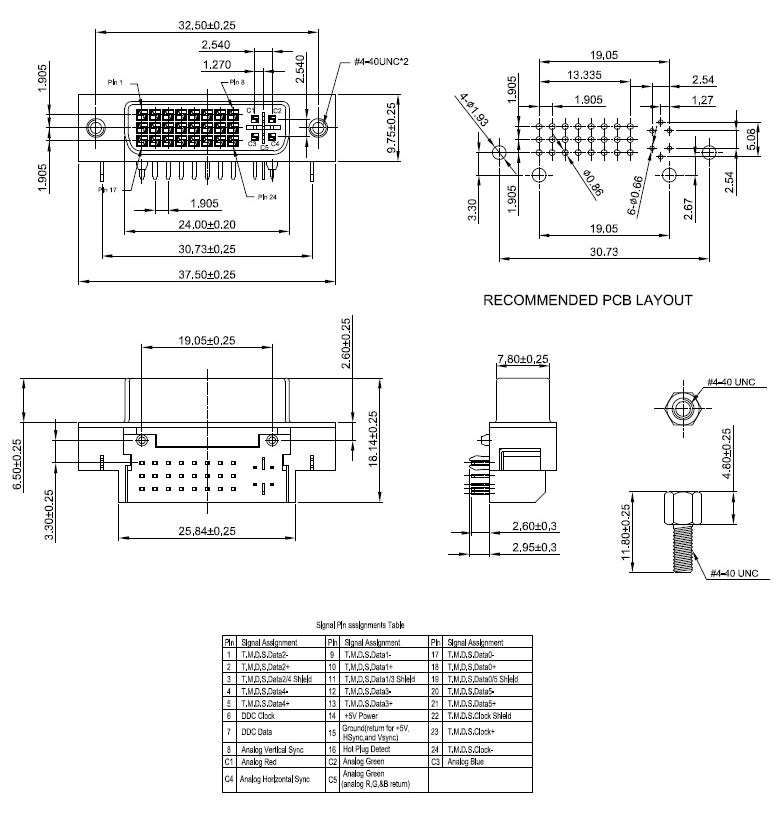

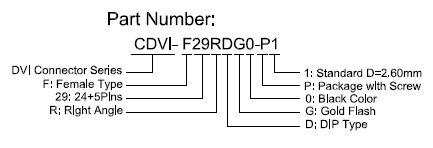

CDVI-F29RDG0-P1

Material

• Housing: PBT+Nylon66, UL 94V-0 Rated.
• Color: Black.
• Contact: Brass.
• Plating: Gold plating over Nickel on contact area;
  Tin plating on solder Tail.
• Harpoon: SPCC.
• Plating: Tin Plating Over Nickel.
• Shell: SPCC.
• Plating: Full Nickel Plating.
• Rivet: Copper Alloy (Lead≦40000PPM).
• Plating: Full Nickel Plating.
• Screw: SPCC(Lead≦40000PPM).
• Plating: Full Nickel Plating.

Mechanical

• Mating Force: 4.5Kg Max.
• Unmating Force: 1.0Kg Min and 4.0Kg Max.
• Durability: 100 Cycles.

Electrical Specification

• Current Rating: 1.5 Ampere per Contact.
• Shell Resistance: 50mΩ Max Initial, 50mΩ Max.
• Contact Resistance: 20mΩ Max.
• Insulation Resistance: 1000MΩ Min.
• Dielectric Withstanding Voltage: 500V DC RMS ± 50V, 60Hz.

Environmental

• Operating Temperature: -20°C to +85°C
• RoHS Compliance.
