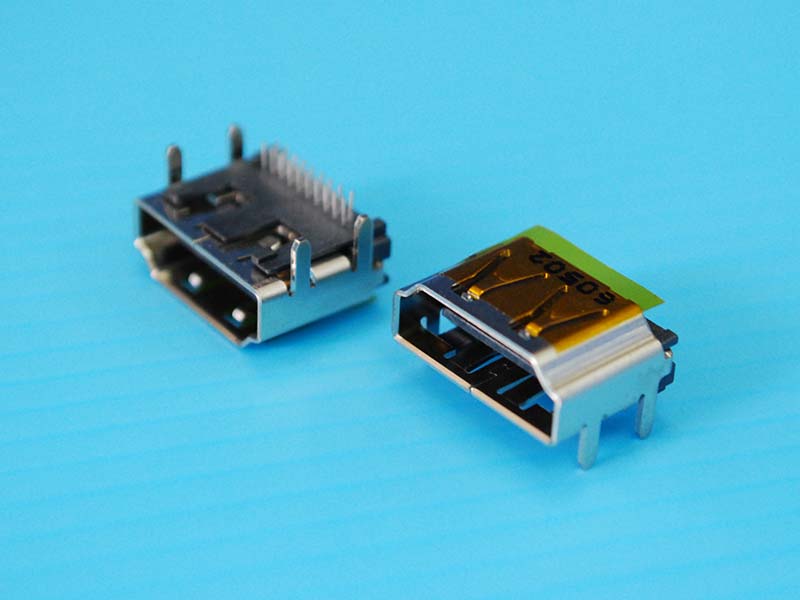

CHDM-P19RD30-0A

Description
  • HDMI (High Definition Multimedia Interface) 19Pins Right Angle
  • DIP Two Rows D=1.4mm
  • Reverse Type
  • Without Flange

Material

  • Housing: LCP+50%G.F., UL 94V-0 Rated.
  • Color: Black.
  • Spacer: LCP+50% G.F., UL 94V-0 rated.
  • Color: Black.
  • Shield: Brass.
  • Plating: Nickel(40u" Min.) Plating.
  • Film: PET.
  • Color: Brown.
  • Contact: Brass.
  • Plating: Gold plating on contact area;
    Tin(100u" Min.) plating on solder Tail.
    Nickel(40u" Min.) underplating overall.

Electrical Specification

  • Operation Voltage: 40VAC max.
  • Current Rating: 0.5Ampere per contact.
  • Contact Resistance: 10 mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Dielectric Withstanding Voltage: 500VAC.

Environmental

  • Operating Temperature: -25°C to +85°C
  • RoHS Compliance.
  • Halogen Free.
