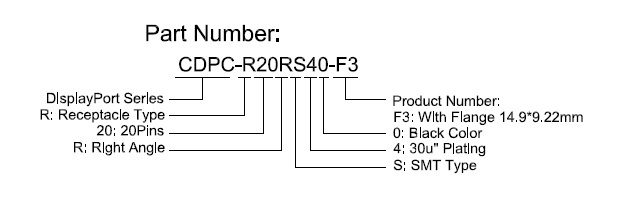

Description
- DisplayPort Connector(DP)
- 20Pins
- Receptacle
- Right Angle
- SMD Type
- With Flange 14.9*9.22mm
- 30u” Gold Plating
- Black Color
Material
- Housing: LCP+50%G.F, UL94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating over Nickel on Contact Area;
Tin Plating on Solder Tail.
- Shell: Stainless Steel.
- Plating: Nickel plating.
Mechanical
- Insertion Force: 4.5Kgf Max.
- Withdrawal Force: 1.0~4.0Kgf.
- Female Screw Lock Torque: 3Kgf-cm Max.
Electrical Specification
- Operation Voltage: 40VAC Max.
- Current Rating: 0.5 Ampere per Contact.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 500V AC Min.
Environmental
- Operating Temperature: -20°C to +85°C
- RoHS Compliance.
![]()
![]()
