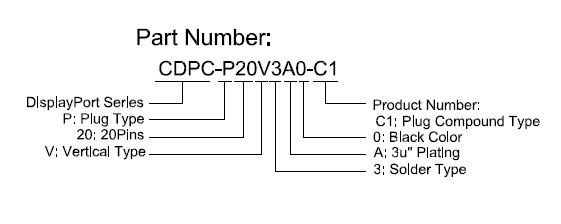

CDPC-P20V3A0-C1

Material

• Housing: LCP, UL94V-0 Rated.
• Color: Black.
• Contact: Phosphor Bronze.
• Plating: Gold Plating over Nickel on Contact Area;
  Tin Plating on Solder Tail.
• Shell: Brass.
• Plating: Nickel plating.
• Spring: Stainless Steel (SUS 304).
• Top Cover: Nylon66, UL 94V-0 Rated.
• Color: Black.
• Bottom Cover: Nylon66, UL 94V-0 Rated.
• Color: Black.

Electrical Specification

• Operation Voltage: 40VAC Max.
• Current Rating: 0.5 Ampere per Contact.
• Contact Resistance: 30mΩ Max.
• Insulation Resistance: 100MΩ Min.
• Dielectric Withstanding Voltage: 500V AC Min.

Environmental

• Operating Temperature: -20°C to +85°C
• RoHS Compliance.
