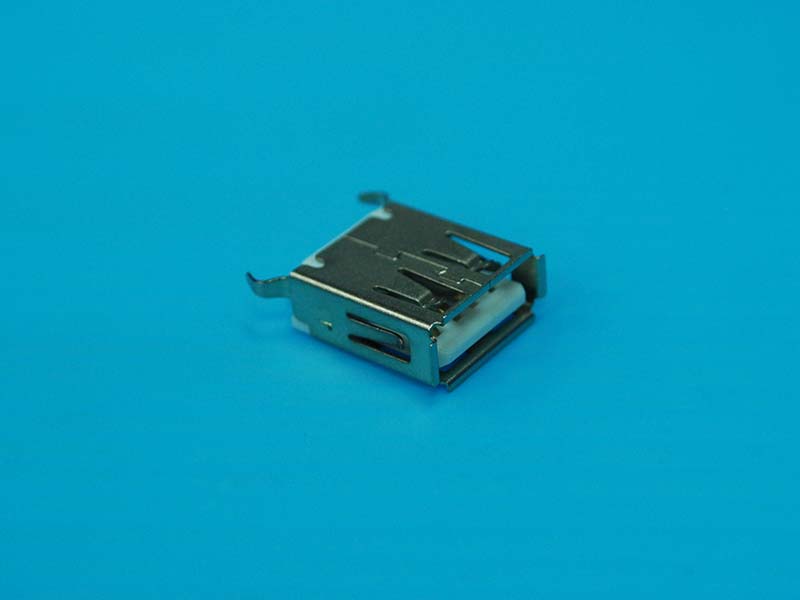

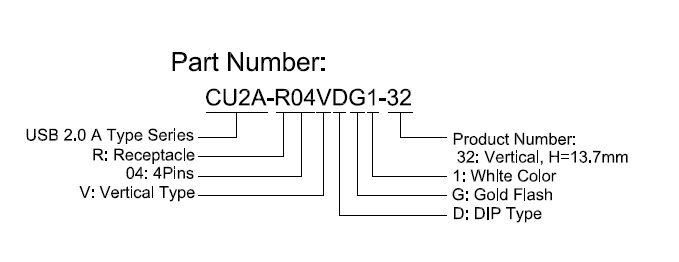

Description
- USB 2.0 A Type
- Receptacle
- 4Pins
- Vertical
- H=13.7mm
- DIP Type
- Gold Flash
- PBT
- White Color
Material
- Housing: PBT, UL94 V-0 Rated.
- Color: White.
- Contact: Brass T=0.25mm.
- Plating: Gold Plating over Nickel on Contact Area;
Tin Plating over Nickel on Solder Tail.
- Shield: Brass, T=0.30mm.
- Plating: Nickel Plating.
Electrical Specification
- Current Rating: 1.5 Ampere.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC 1 Sec. Level.
Environmental
- Operating Temperature: -55°C to +85°C
- RoHS Compliance.
![]()
![]()
