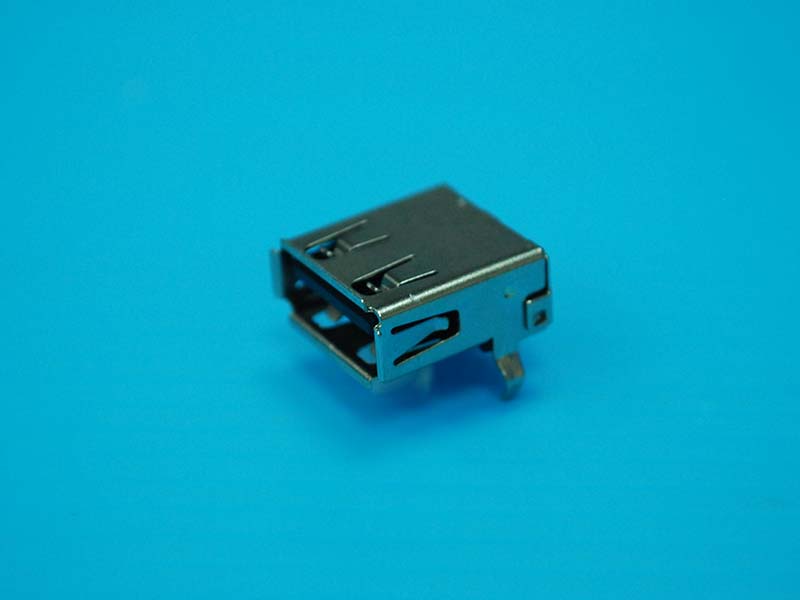

Description
- USB2.0 A Type
- 4Pins Receptacle
- Right Angle
- DIP Type
- Black Color
- Gold Flash Plating
Material
- Housing: PBT, UL94 V-0 Rated.
- Color: Black.
- Contact: Brass T=0.25mm.
- Plating: Gold Plating over Nickel on Contact Area;
Tin Plating over Nickel on Solder Tail.
- Shield: SPCC, T=0.30mm.
- Plating: Nickel Plating.
Electrical Specification
- Current Rating: 1.5 Ampere.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC 1 Sec. Level.
Environmental
- Operating Temperature: -55°C to +85°C
- RoHS Compliance.
![]()
![]()
