Conn-Link Technology Inc

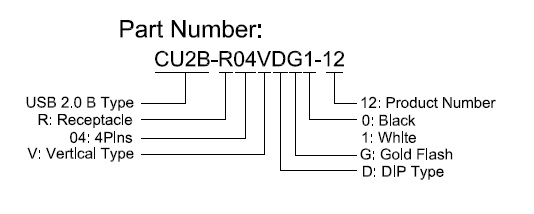

Description
  • USB2.0 B Type
  • 4Pins Receptacle
  • Vertical
  • DIP Type
  • Gold Flash Plating
  • White Color

Material

  • Housing: High-Thermoplastic, UL94 V-0.
  • Color: Black or White.
  • Contact: Phosphor Bronze.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating over Nickel on Solder Tail.
  • Shield: SPCC.
  • Plating: Nickel(100u"~120u") Plating.

Mechanical

  • Insertion Force: 40N(4.0Kgf) Max.
  • Withdrawal Force: 10N(1.02Kgf) Min.
  • Contact Retention Force: 1.47N (0.15Kgf) Min.
  • Durability: 5000 cycles.

Electrical Specification

  • Current Rating: 1.0Ampere Max per Contact.
  • Contact Resistance: 50mΩ Max.
  • Insulation Resistance: 100MΩ Min Initial at 100VDC.
  • Dielectric Withstanding Voltage: 500 VAC Min for 1Minute.
    With 1mA Max Current Leakage.

Environmental

  • Operating Temperature: -0°C to +50°C.
  • Storage Temperature: -20°C to +60°C.
  • RoHS Compliance.
