Conn-Link Technology Inc

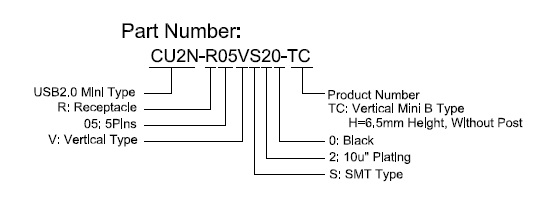

CU2N-R05VS20-TC

Description
  • USB2.0 Mini B Type
  • 5Pins Receptacle
  • Vertical Type
  • H=6.50mm Height
  • SMT Type
  • without Post
  • Black Color
  • 10u” Gold Plating

Material

  • Housing: LCP with G.F. UL94V-0.
  • Color: Black.
  • Contact: Phosphor Bronze.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating on Solder Tail.
  • Shield: Brass.
  • Plating: Nickel Plating.

Mechanical

  • Insertion Force: 3.57Kgf Max.
  • Withdrawal Force: 0.71Kgf Min.
  • Durability: 5,000 cycles.

Electrical Specification

  • Current Rating: 1.5Ampere at 30VDC.
  • Contact Resistance: 50mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Dielectric Withstanding Voltage: 100 VAC for 1Min.

Environmental

  • Operating Temperature: -30°C to +80°C
  • RoHS Compliance.
