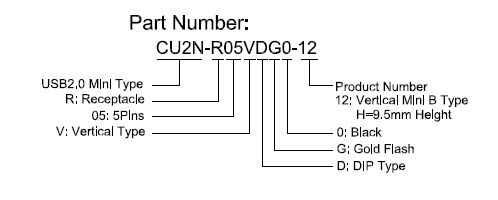

Description
- USB2.0 Mini B Type
- 5Pins Receptacle
- Vertical Type

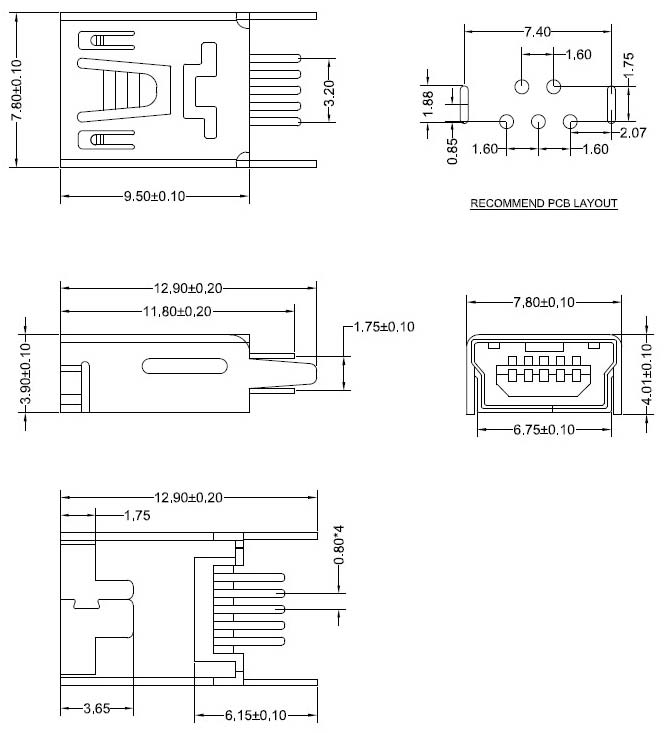

- H=9.5mm Height
- DIP Type
- Gold Flash Plating
- Black Color
Material
- Housing: LCP+50%G.F, UL 94V-0 rated.
- Color: Black.
- Contact: Brass.
- Plating: Gold Plating over Nickel(60u") on Contact Area;
Tin(80u"~100u") Plating over Nickel(60u") on Solder Tail.
- Shield: Copper Alloy.
- Plating: Nickel(100u"~120u") Plating.
Mechanical
- Insertion Force: 35N Max.
- Withdrawal Force: 10N Min Initial, 8-20N after 1000Cycles.
- Durability: 5,000 cycles.
Electrical Specification
- Current Rating: 1.0Ampere at 30VDC.
- Contact Resistance: 30mΩ Max Initial, 40mΩ after 1000Cycles.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 100 VAC per Sec.
Environmental
- Operating Temperature: -55°C to +105°C
- RoHS Compliance.
![]()
![]()
