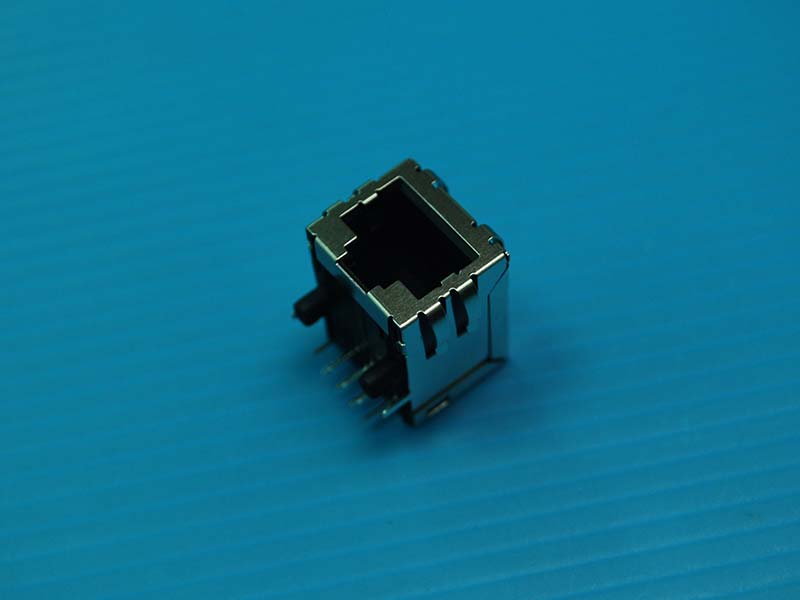

CRJM-188RDG0-DD031

Description
  • RJ45 Module Jack
  • 8P8C
  • Right Angle(Side Entry)
  • DIP
  • Gold Flash
  • Body L=21.6mm
  • Post Distance 11.43mm
  • With Shielding 3Side Springs
  • Without LED
  • With Transformer 10/100Mbps
  • 4Core Type 31
  • Black Color

Material

  • Housing: Thermoplastic, UL 94V-0 Rated.
  • Color: Black.
  • Contact: 0.35mm Thickness Copper Alloy.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating over Nickel on Solder Tail.
  • Shielded: Copper Alloy.
  • Plating: Nickel Plating.

Mechanical

  • Durability: 750 Cycles.

Electrical Specification

  • Operation Voltage: 125VAC Rms.
  • Current Rating: 1.5 Ampere.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 500MΩ  Min at 500VDC.
  • Dielectric Withstanding Voltage: 1000 VAC Rms 60Hz, 1Min.

Environmental

  • Storage Temperature:  -40°C to +85°C
  • Operating Temperature:  0°C to +70°C
  • Mates With Modular Plug Conforming To FCC Part 68, Subpart F.
  • RoHS Compliance.
