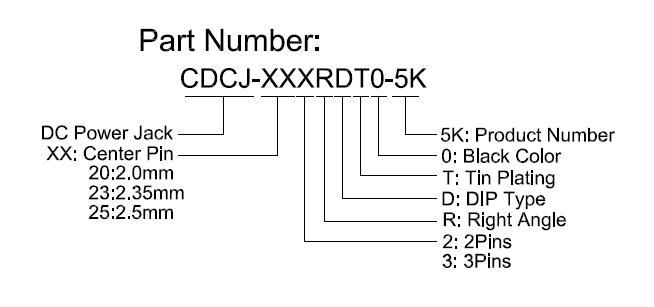

Description
- DC Power Jack
- 2.00mm or 2.35mm or 2.5mm Center Pin/6.30mm
- Right Angle
- DIP Type
- With Kink Pins
- Tin Plating
- H=11.0mm Height
- Black Color

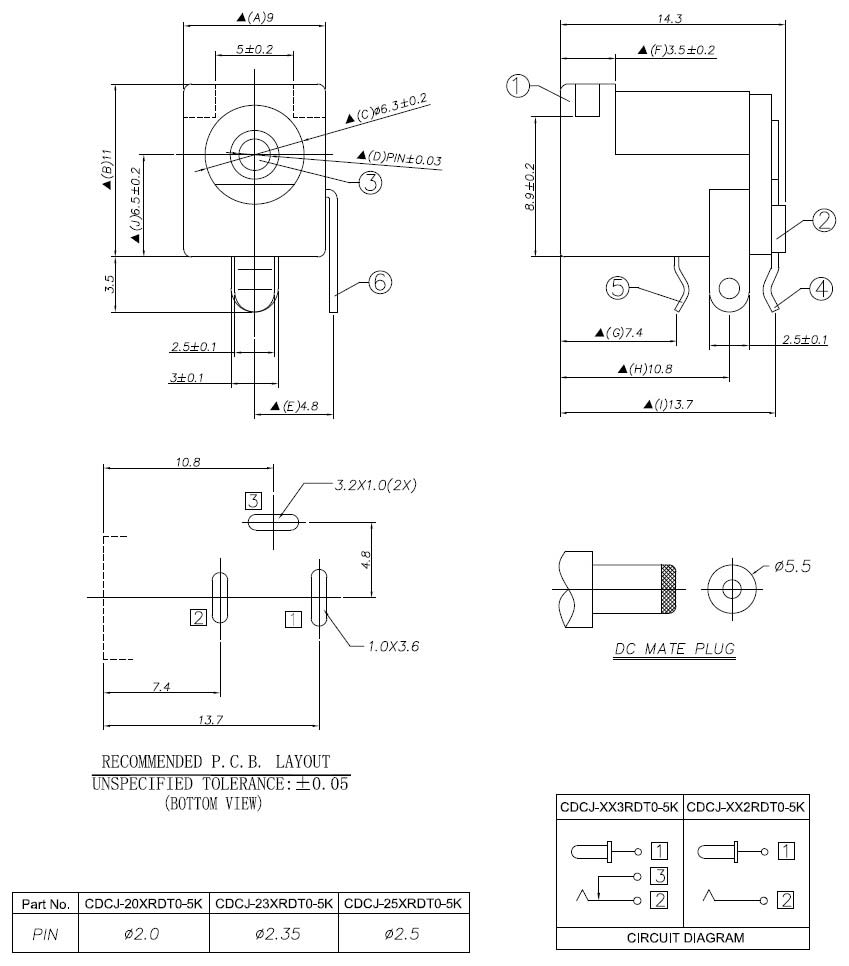

Mechanical
- Insertion Force: 3N to 30N.
- Extraction Force: 3N to 30N.
- Durability: 5,000 Cycles Min.
Electrical Specification
- Contact Resistance: 30mΩ Max initial, 50mΩ Max after Life Test.
- Insulation Resistance: 100MΩ Min initial, 50MΩ Min after Life Test.
- Dielectric Withstand Voltage: 500V AC per Minute.
- Current Rating: 20V DC at 2Amp.
Environmental
- Operating Temperature: -20°C to +70°C
- Respervation Temperature: -40°C to +85°C
- RoHS Compliance.
![]()
![]()
