Description

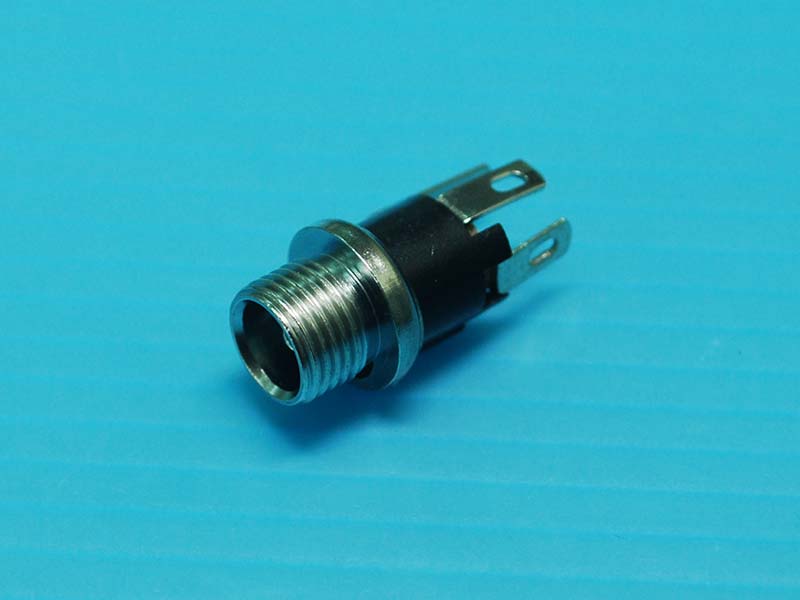

- DC Power Jack
- 2.00mm
- 2.34mm
- or 2.5mm Center Pin/5.70mm
- Vertical
- DIP Type with Holes
- Screw L=5.7mm
- M8xP0.75mm
- Washer Thickness 0.5mm
- Tin Plating
- H=10.0mm Height
- Black Color
Mechanical
- Insertion Force: 3N to 30N.
- Extraction Force: 3N to 30N.
- Durability: 5,000 Cycles Min.
Electrical Specification
- Contact Resistance: 30mΩ Max initial, 50mΩ Max after Life Test.
- Insulation Resistance: 100MΩ Min initial, 50MΩ Min after Life Test.
- Dielectric Withstand Voltage: 500V AC per Minute.
- Current Rating: 30V DC at 3Amp.
Environmental
- Operating Temperature: -20°C to +70°C
- Respervation Temperature: -40°C to +85°C
- RoHS Compliance.
![]()
![]()
