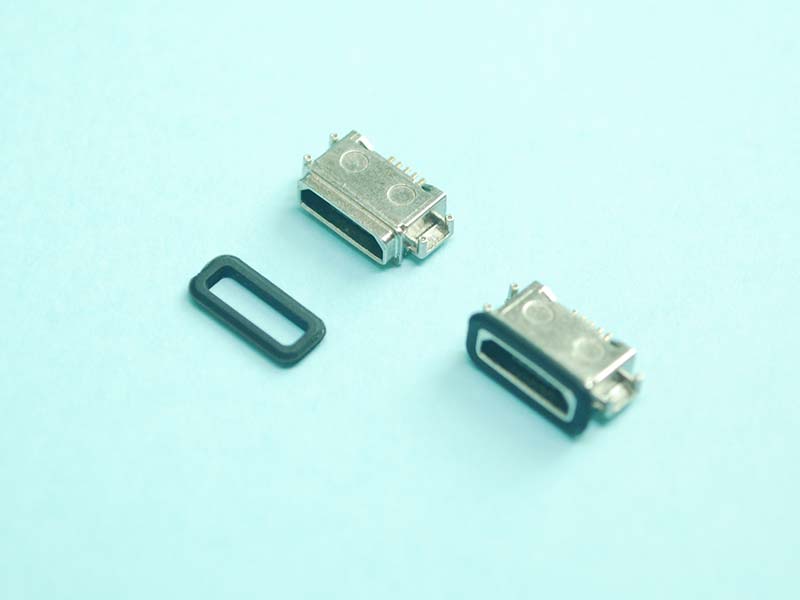

Description
- Waterproof Connector
- Micro USB B Type
- Receptacle
- 5Pins
- Subside Type
- H=1.43mm
- SMT
- Gold Flash
- Posts Distance 9.7mm
- Black Color
- with Oval Ring
- Waterproof Level IPX7
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Gold Plating over Nickel on Contact Area;
Matt Tin Plating over Nickel on Solder Tail.
- Shield: ZN Alloy.
- Plating: Nickel Plating.
Mechanical
- Insertion Force: 35N Force Max.
- Withdrawal Force: 8N Force Min.
- Durability: 10,000Cycles.
Electrical Specification
- Current Rating: 1A Min.
- Voltage Rating: 30V AC R.M.S.
- Contact Resistance: 30mΩ Max Initial.
- Insulation Resistance: 1000MΩ Min Measured by 100V DC.
- Dielectric Withstanding Voltage: 100V AC R.M.S. 60MHz per Minute.
Environmental
- Operating Temperature: -20°C to +85°C.
- Water Proofness: Based on IP67 (1m, 30minute.)
Body With O-Ring's Seal Area Burrs is 0.05mm Max.
- For reflow soldering lead-free products & the O-ring can not go through
the IR process with waterproof connector together.
- Housing and O-Rings are Packed Separately.
- The Connector Can Go Through the IR Process Once Only.
- RoHS Compliance.
![]()
![]()
