Conn-Link Technology Inc

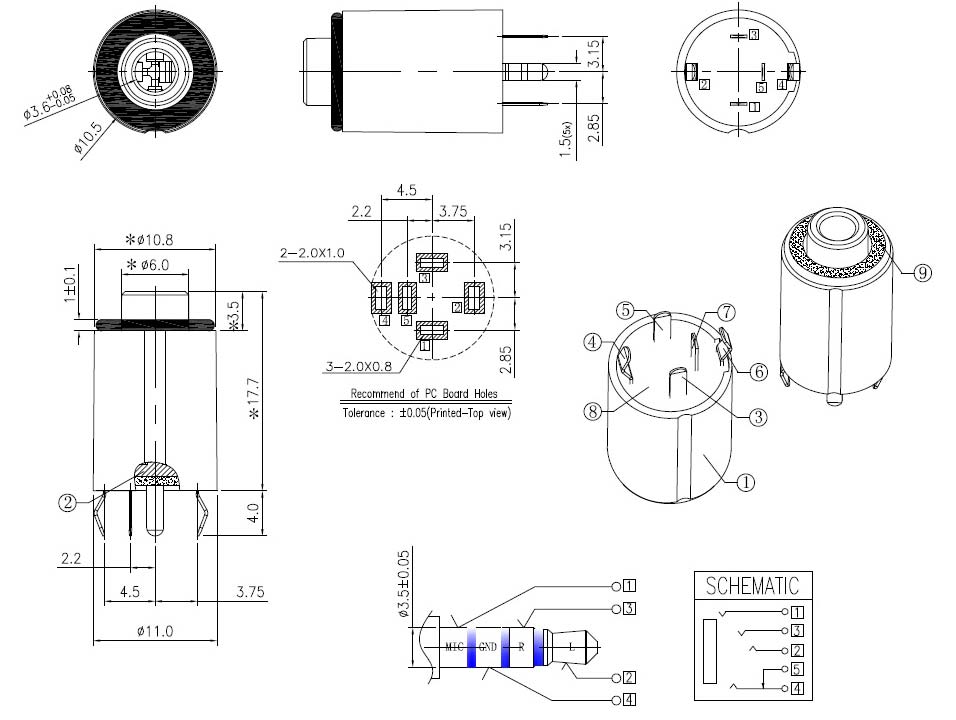

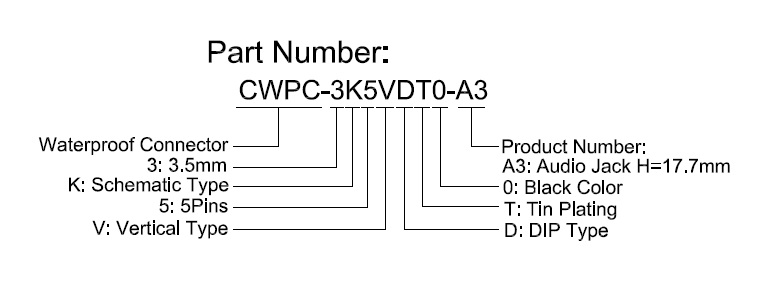

CWPC-3K5VDT0-A3

Description
  • Waterproof Connector
  • Earphone Jack
  • 3.5mm
  • 4Poles
  • 5Pins
  • Vertical Type
  • DIP
  • Tin Plating
  • H=17.7mm
  • Black Color
  • with Oval Ring
  • Waterproof Level IP67

Specification

  1. Insulation Resistance: A Voltage of 500V DC.
    Shall Be Applied to The Terminals, After Which Measurement Shall Be
    Made. A Gauge for The Measurement Shall Be Used The Insulated gauge.
  2. Contact Resistance: 30mΩ Maximum.
  3. Withstand Voltage: 500V AC for One Minute.
  4. Durability: 5,000 Insertion/Removal Cycles Minimum.
  5. Insertion Force: 0.4Kgf ~ 2.0Kgf.
  6. Withdrawal Force: 0.4Kgf ~ 2.0Kgf.
  7. Water Proofness: This Product is Conform to JIS Standard IPX7 by Waterproof Jack.
  8. Using Plug:  3.5mm, 4Poles Stereo Plug Earphone
    (LCH/RCH/GND/MIC) Provided That They Conform to JIS C6560.
  9. O-Ring Assembly Area to Maintain Smooth, Shall Have No Burrs.
  10. Housing and O-Rings are Packed Separately.
  11. RoHS Compliance.
