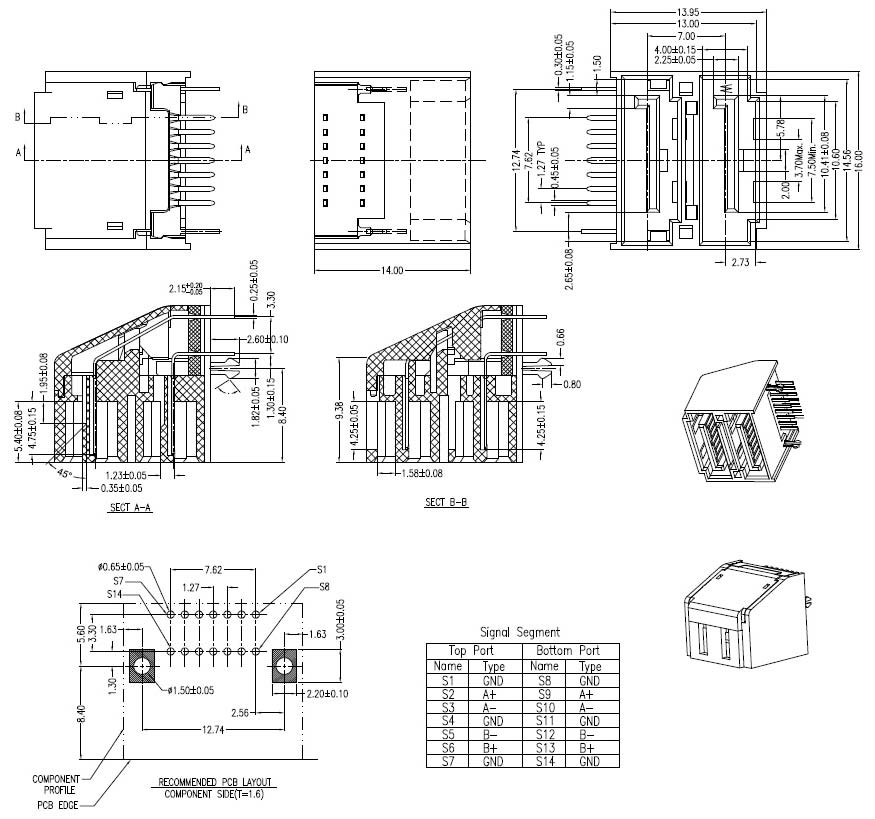

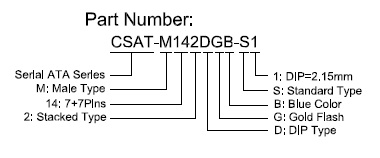

Description
- SATA (Serial ATA) 7+7P
- Male
- Double Ports
- Stacked
- Standard Type
- DIP=2.15mm
- Blue Color
- with Shrounded
- Gold Flash
Material
- Housing: Nylon46+30% G.F., UL 94V-0 rated.
- Color: Blue.
- Contact: Brass.
- Plating: Gold plating over Nickel on contact area;
Tin plating on solder Tail.
- Harpoon: Brass.
- Plating: Tin Plating over Nickel.
Mechanical
- Insertion Force: 45N Max.
- Withdrawal Force: 10N Min.
- Durability: 500 Cycles.
Electrical Specification
- Operation Voltage: 100VAC Max.
- Current Rating: 1.5 Ampere per Contact.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC.
Environmental
- Operating Temperature: -55°C to +125°C
- RoHS Compliance.
![]()
![]()
