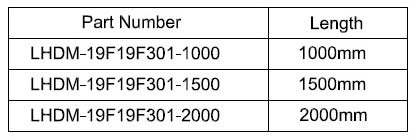

LHDM-19F19F301-XXXX
Description
- HDMI Cable Assembly
- Type A 19P Female 180° to Type A 19P Female 180°
- Black Color
- Length=XXXXmm.
HDMI Cable
- [(30AWG*1P+D+FAM)*5P+30AWG*4C] +AEB PVC
- JACKET,COLOR/BLACK(BK-01) OD:6.0±0.2mm.
- Print Word: "E189529 AWM 20276 80℃ 30V HDMI cable"
Electrical Specification
- 100% Open/Short & Miss Wire Test
- Insulation Resistance: ≥5Mohm Min @ DC/300V.
- Contact Resistance: ≤3ohm Max
Environmental
- RoHS Compliance.
Connectors

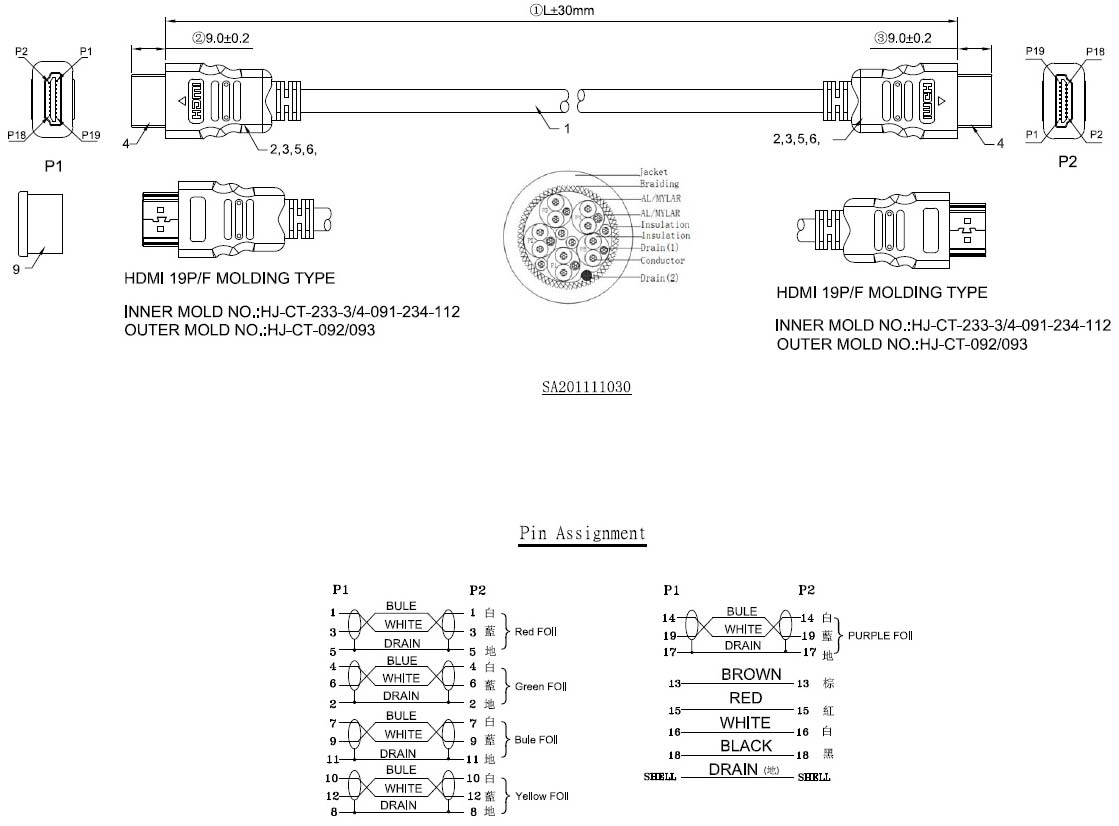

HDMI 19P/FEMALE TO HDMI 19P/FEMALE
HDTV-DVD Test
1080P
